| Place of Origin: | China |
|---|---|
| Brand Name: | TISCO, BAO STEEL |
| Certification: | SGS BV |
| Model Number: | PPGI |
| Minimum Order Quantity: | 5 TONS |
| Price: | Negotiable |
| Packaging Details: | standard vessel shipping packing |
| Delivery Time: | 8-14 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 Tons per Month |
| Product Name: | PPGI Cold Rolled Prepainted Galvanized Steel Coils | Standard: | AISI,ASTM,BS,DIN,GB,JIS |
|---|---|---|---|
| Material Grade: | DX51D DX52D DX53D SGCC SGCH SGC340 SGC400 | Surface Treatment: | Coated |
| Coating Material: | PE,SMP,HDP,PVDF | Color : | RAL Color Or As Request |
| Base Steel: | Hot Dip Galvanized Steel, Hot Dip Galvalume Steel | Top Coating Thickness: | 9μm-25μm |
| Back Coating Thickness: | 5μm-10μm | Thickness: | 0.3-1.5mm |
| Width: | 500-1350mm | Zinc Coated: | Z80-275 G/m² |
| Coil Weight: | 4-6 Tons | ||
| High Light: | SGCC Prepainted Galvanized Steel Coils,PPGL Prepainted Galvanized Steel Coils,DX51D prepainted steel coil |
||

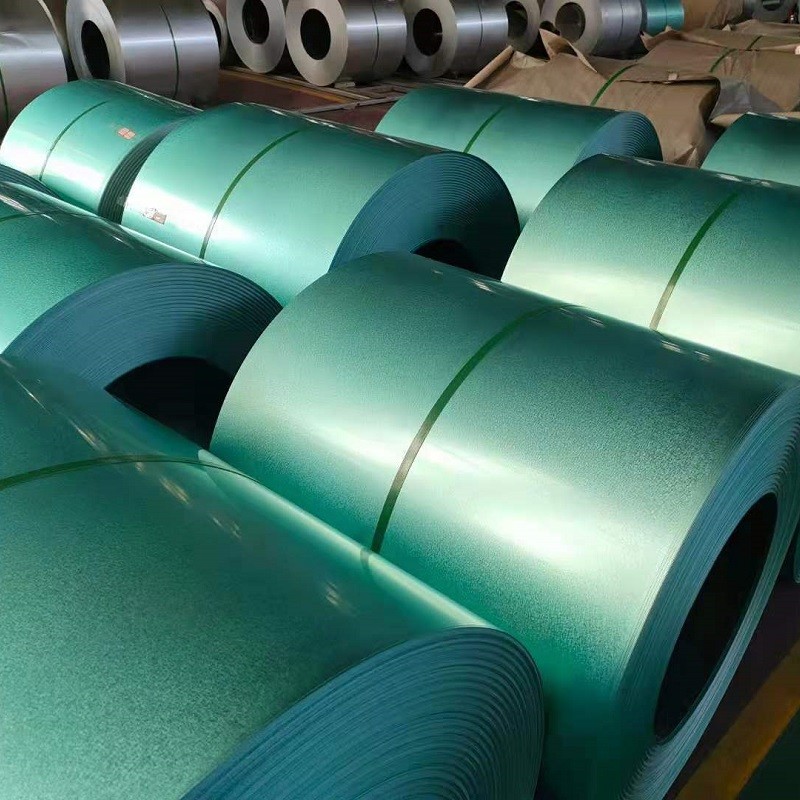

SGCC Color Coated PPGI PPGL DX51D Prepainted Cold Rolled Coil Color Coated Galvanized Steel Iron Sheet Plate Coil
PPGI Steel Coil Introduction
Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.
According to the production and processing methods can be divided into the
1) hot dip galvanized steel. Thin plate in melting zinc bath, make its surface adhesion of a layer of zinc sheet. At present mainly adopts continuous galvanizing process, namely the continuous roll of steel plate in the melt zinc plating tank made of galvanized steel sheet;
(2) the alloying of galvanized steel. This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ℃, it make the generation of zinc and iron alloy membrane. This kind of galvanized sheet with good coating of sex and weldability;
The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.
| Commodity | PPGI, PPGL |
| Steel Grade | CGLCC,DX51D+Z/DX53D+Z/S220GD-550GD,CS-B/SS255-550 |
| Nominal Thickness | 0.13mm-1.5mm |
| Nominal Width | 1500mm |
| Tolerance | Thickness:+/-0.02mm, Width: +/-3mm |
| Zinc Coating | Zinc 30-275g |
| Color System | Produce according to RAL Color System or as per buyer’s color sample. |
| Surface treatment | Galvanized Coated, |
| Inner Diameter of Coil | 508mm/610mm |
| Coil Weight | 3-8mt |
| Package | Standard export package (Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet) |
| Sample |
Free sample will be sent as your requirement |
Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.
Product chemical component
Galvanized Steel 0.18mm-20mm thick galvanized steel sheet 2mm thick Hot dip galvanized steel sizes galvanized sheet metal roll
|
bse metal type
|
Grade
|
CHEMICAL COMPOSITION %
|
|||
|
C
|
Si
|
Mn
|
P
|
||
|
cold rolled steel sheet
|
DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DC52D+Z (St04Z), DC52D+ZF
|
≤0.08
|
-
|
≤0.45
|
≤0.030
|
|
|
DC53D+Z (St05Z), DC53D+ZF
|
≤0.08
|
-
|
≤0.40
|
≤0.030
|
|
|
DC54D+Z (St06Z), DC54D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
DC56D+Z (St07Z), DC56D+ZF
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
|
hot rolled steel sheet
|
DD51D+Z (St01ZR, St02ZR)
|
≤0.10
|
-
|
≤0.50
|
≤0.035
|
|
DD54D+Z (St06ZR)
|
≤0.01
|
≤0.10
|
≤0.30
|
≤0.025
|
|
Packing & Delivery
Packing: Standard export seaworthy packing.
Shipping: by container or break bulk vessel. Max 25mt per 20ft container.
Lead time: 20 days to 50 days acc to size and quantity
Payment terms: TT, LC at sight, Usance LC, DP etc.
Applications of PPGI Coils
Construction field used as building material: roofing tiles, roofing components like gutter, balcony panel, warehouse, partition board, windows and doors, fencing panel, corrugated sheets, structural decking etc.
Auto Parts: car body shell, underpan, doors, fuel tank, stamping parts etc.
Furniture Industry: wardrobe, desk, billboard, dustbin etc.
Electrical Industry: shell for electric appliances etc.
Standard & Grade:
ASTM A755-A755M--Standard Specification for Steel Sheet, Metallic Coated by the Hot-Dip Process and Prepainted by the Coil-Coating Process for Exterior Exposed Building Products
JISG 3312--Prepainted Hot-dip Zinc-Coated Steel Sheet and Strip
JISG 3322--Prepainted Hot-dip 55% aluminum-zinc alloy-coated steel sheets and coils.
GBT12754--Prepainted Steel Sheet
