| Place of Origin: | China |
|---|---|
| Brand Name: | TISCO, BAO STEEL |
| Certification: | SGS BV |
| Model Number: | PPGI |
| Minimum Order Quantity: | 5 TONS |
| Price: | Negotiable |
| Packaging Details: | standard vessel shipping packing |
| Delivery Time: | 8-14 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 10000 Tons per Month |
| Product Name: | PPGI Cold Rolled Prepainted Galvanized Steel Coils | Standard: | AISI,ASTM,BS,DIN,GB,JIS |
|---|---|---|---|
| Material Grade: | DX51D DX52D DX53D SGCC SGCH SGC340 SGC400 | Surface Treatment: | Coated |
| Coating Material: | PE,SMP,HDP,PVDF | Color : | RAL Color Or As Request |
| Base Steel: | Hot Dip Galvanized Steel, Hot Dip Galvalume Steel | Top Coating Thickness: | 9μm-25μm |
| Back Coating Thickness: | 5μm-10μm | Thickness: | 0.3-1.5mm |
| Width: | 500-1350mm | Zinc Coated: | Z80-275 G/m² |
| Coil Weight: | 4-6 Tons | ||
| High Light: | DX53D Prepainted Galvanized Steel Coils,DX52D Prepainted Galvanized Steel Coils,SGC400 prepainted gi steel coil |
||

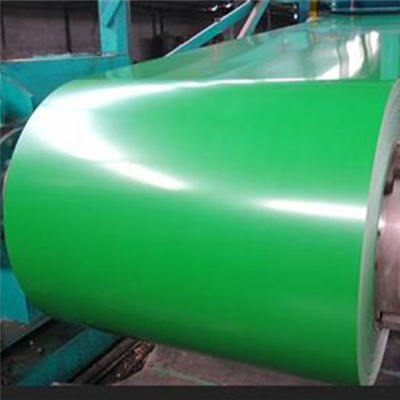

DX51D PPGI Color Prepainted Galvanized Steel Sheets Coils Plates Strips
PPGI Steel Coil Introduction
PPGI is pre-painted galvanized iron, also known as pre-coated steel, zinc coated steel, color coated steel etc., typically with a hot dip zinc coated steel substrate. PPGI is an industrial steel product with multiple uses. It is a form of galvanized iron that is also dipped into zinc. However, the zinc coat is pre-painted in the factory instead of wait until after the steel is formed. Applying a zinc coat prevents rusting. PPGI is also known as metallic coated steels, or pre-coated steel. This product will typically come in the form of a coil. This steel is often not costly and can last for a long period of time.
The hot dip metallic coating process is also used to manufacture steel sheet and coil with coatings of aluminium, or alloy coatings of zinc/aluminium, zinc/iron and zinc/aluminium/magnesium which may also be factory pre-painted. While GI may sometimes be used as a collective term for various hot dip metallic coated steels, it more precisely refers only to zinc coated steel. Similarly, PPGI may sometimes be used as a general term for a range of metallic coated steels that have been pre-painted, but more often refers more precisely to pre-painted zinc coated steel.
| Product name: | Pre-painted Galvanied steel coil |
| Steel grade: | DX51D, Q195, Q195L SGCC CGCC,SPCC |
| Thickness: | 0.17 to 1.0 mm |
| Width: | 600-1500 mm |
| Zinc coating: | 45--275 G/M2 |
| Coil weight: | 3-6 tons |
| Coil Internal Diameter: | 508 mm/610mm |
| Surface treatment: | Bright and clean, smooth and flat |
| Colors: | As per the Ral codes. |
| Coating structure: 2/1: | Top+ Prime/Back, PE/EPOXY; 20- 25 microns/5-7 microns |
| Lifespan: | 10-15 years, very strong corrosion resistance it wouldn't |
| Tolerance | Thickness: +/-0.02 mm, |
| width: +/-2 mm; | |
| Total quantity: +/-5%; | |
| Zinc coating: +/-5% | |
| Tensile Strength: | >300mpa |
| Yield Strength: | 370-380mpa |
| Machine features: | Suitable for molding and join-up shaping, welding processes. |
Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.
Packing & Delivery
Packing: Standard export seaworthy packing.
Shipping: by container or break bulk vessel. Max 25mt per 20ft container.
Lead time: 20 days to 50 days acc to size and quantity
Payment terms: TT, LC at sight, Usance LC, DP etc.
Applications of PPGI Coils
Construction field used as building material: roofing tiles, roofing components like gutter, balcony panel, warehouse, partition board, windows and doors, fencing panel, corrugated sheets, structural decking etc.
Auto Parts: car body shell, underpan, doors, fuel tank, stamping parts etc.
Furniture Industry: wardrobe, desk, billboard, dustbin etc.
Electrical Industry: shell for electric appliances etc.
Standard & Grade:
ASTM A755-A755M--Standard Specification for Steel Sheet, Metallic Coated by the Hot-Dip Process and Prepainted by the Coil-Coating Process for Exterior Exposed Building Products
JISG 3312--Prepainted Hot-dip Zinc-Coated Steel Sheet and Strip
JISG 3322--Prepainted Hot-dip 55% aluminum-zinc alloy-coated steel sheets and coils.
GBT12754--Prepainted Steel Sheet
