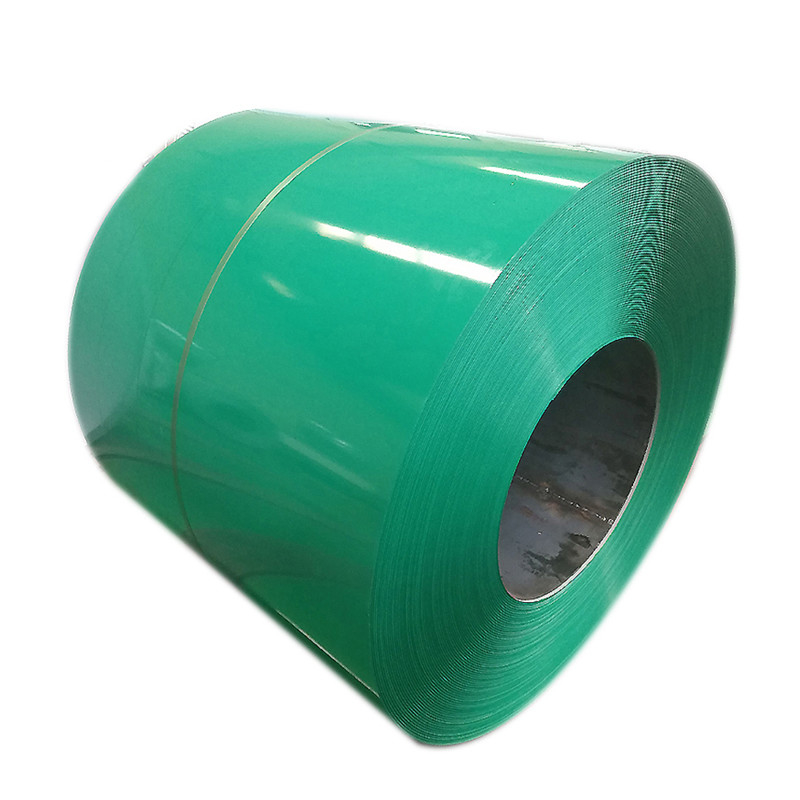

ASTM BS RAL 9003 RAL9215 Galvanized Steel PPGL Coil 1.5mm Color Coated Cold Rolled Roofing Sheet PPGI

Basic Information
Place of Origin: China
Brand Name: Zhongli Brand
Certification: CE ISO
Model Number: PPGI SGCC PPGL
Minimum Order Quantity: 1 TON
Price: USD
Packaging Details: standard vessel shipping packing
Delivery Time: 15-21 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 600 Tons per Month
Detail Information
Product Name: RAL9005 RAL9215 Galvanized Steel PPGI PPGL Cold Rolled Coil Standard: AISI,ASTM,BS,DIN,GB,JIS
Material Grade: DX51D DX52D DX53D S235 S275 Surface Treatment: Coated
Coating Material: PE,SMP,HDP,PVDF Color : RAL Color Or As Request
Base Steel: Hot Dip Galvanized Steel, Hot Dip Galvalume Steel Top Coating Thickness: 9μm-25μm
Back Coating Thickness: 5μm-10μm Thickness: 0.3-1.5mm
Width: 500-1350mm Zinc Coated: Z80-275 G/m²
Coil Weight: 4-6 Tons
High Light:

Cold Rolled PPGL Coil


RAL9215 Galvanized Steel Coil


1.5mm Steel Coil

Product Description

Shandong Zhongli Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.


RAL 9003 Prepainted Galvanized Steel Coil Color Coated Cold Rolled Roofing Sheet PPGI 0


What is Prepainted Galvanized Steel Coil (PPGI)?



PPGI is pre-painted PPGI/PPGL Coils And Sheets, galvanized steel, also known as pre-coated steel, color coated steel, PPGI steel coil etc.

Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pre-treatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used to include polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.



Specification of PPGI Steel Coil


Product name
RAL 9003 Prepainted Galvanized Steel Coil Color Coated Cold Rolled Roofing Sheet PPGI
Material Grade
DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,
or Customer’s Requirement
Form GI/GL/PPGI/PPGL Coils/Sheets, Corrugated Coila/Sheets
Place of Origin Shandong,China(Mainland)
Surface Treament
Coating Material
Color All RAL colors or customers sampels color
Base Steel Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Top Coating Thickness 15μm-25μm
Back Coated Thickness 5μm-20μm
Thickness 0.12-1.2mm
Width2006 200-1500mm
Zinc Coating Z20-275g/m²
Coil ID 508/610mm
Coil Weight 3-8 tons
Packaging Standard export seaworthy packing
Transport Ocean Shipping
Port Tianjin/Qingdao/Shanghai
Delivery Time 15-0 days after receive deposit
Payment 30% T/T for deposit and the balance against the copy of BL



Applications of Prepainted Galvanized Steel Coils (PPGI)


Pre-painted galvanised sheets (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.


  1. Building
  2. Roofing
  3. Transport
  4. Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
  5. Solar Energy
  6. Furniture

RAL 9003 Prepainted Galvanized Steel Coil Color Coated Cold Rolled Roofing Sheet PPGI 1

RAL 9003 Prepainted Galvanized Steel Coil Color Coated Cold Rolled Roofing Sheet PPGI 2
