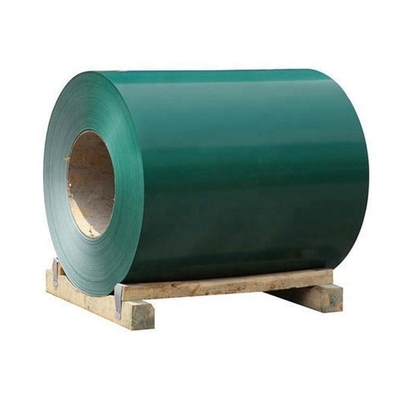

Hot Dipped Color Coated Gi Sheet DX51D SGCC PPGI 1220mm Prepainted Galvanized Steel Coils Color Coated

Basic Information
Place of Origin: China
Brand Name: Zhongli Brand
Certification: CE ISO
Model Number: PPGI PPGL
Minimum Order Quantity: 1 TON
Price: USD 765 to USD 816
Packaging Details: standard vessel shipping packing
Delivery Time: 8-14 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 Tons per Month
Detail Information
Product Name: PPGI Color Coated 1220mm 1500mm Prepainted Steel Coil Standard: AISI,ASTM,BS,DIN,GB,JIS
Material Grade: 20#/40# Surface Treatment: Coated
Coating Material: PE,SMP,HDP,PVDF Color : RAL Color Or As Request
Base Steel: Hot Dip Galvanized Steel, Hot Dip Galvalume Steel Top Coating Thickness: 9μm-25μm
Back Coating Thickness: 5μm-10μm Thickness: 0.3-1.5mm
Width: 500-1350mm Zinc Coated: Z20-Z30 G/m²
Coil Weight: 4-6 Tons
High Light:

PPGI Galvanized Steel Coils


1220mm Prepainted Galvanized Steel Coils


PPGI Color Coated Steel Coils

Product Description

Shandong Zhongli Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.


Hot Dipped Color Coated Gi Sheet DX51D SGCC Standard Prepainted Galvanized Steel 0

Hot Dipped Color Coated Gi Sheet DX51D SGCC Standard Prepainted Galvanized Steel 1

What is Prepainted Galvanized Steel Coil (PPGI)?



PPGI is pre-painted galvanized steel coils and sheets, also known as pre-coated steel, color coated steel, PPGI steel coil etc.

Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pre-treatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used to include polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.

Hot Dipped Color Coated Gi Sheet DX51D SGCC Standard Prepainted Galvanized Steel 2


Specification of PPGI Steel Coil


Product name
PPGI cold rolled prepainted galvanized steel coils
Material Grade
DX51D DX52D DX53D DX54D DX55D DX56D DX57D,
or Customer’s Requirement
Form GI/GL/PPGI/PPGL Coils/Sheets, Corrugated Coils/Sheets
Place of Origin Shandong,China(Mainland)
Surface Treament
Coating Material
Color red, off white, blue, or as request
Base Steel Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Top Coating Thickness 15μm-25μm
Back Coated Thickness 5μm-20μm
Thickness 0.12-1.5mm
Width 600-1500mm
Zinc Coating Z30-275g/m²
Coil Inner Diameter 508/610mm
Coil Weight 2.5-8 tons
Packaging Standard export seaworthy packing
Transport Ocean Shipping
Port Tianjin/Qingdao/Shanghai
Delivery Time 8-15days after receipt of deposit
Payment 30% T/T for deposit and the balance against the copy of BL



Applications of Color Coated Galvanized Steel Coils (PPGI)


Pre-painted galvanised steel coils (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.


  1. Building
  2. Roofing
  3. Transport
  4. Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
  5. Solar Energy
  6. Furniture

Hot Dipped Color Coated Gi Sheet DX51D SGCC Standard Prepainted Galvanized Steel 3

Hot Dipped Color Coated Gi Sheet DX51D SGCC Standard Prepainted Galvanized Steel 4
