Place of Origin: | Shandong,China |
---|---|
Brand Name: | Fulilai Brand |
Certification: | CE,BV,ISO9001,CQC,SGS...... |
Model Number: | DX51D |
Minimum Order Quantity: | 1 Ton |
Price: | USD 480-760 Per Ton |
Packaging Details: | Standard Seaworthy Packages |
Delivery Time: | 5-8 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5000 Tons per Month |
Application: | Making Pipes,cutting Sheets,making Small Tools...... | Type: | Steel Coil ,Color Coated Steel Sheet...... |
---|---|---|---|
Length: | 6m/12m Or As Requested | Certificate: | CE,ISO9001...... |
Tolerance: | ±5% | Coating: | AZ41-AZ60 |
Ral Color: | All Ral Color | Width: | 1000mm 1250mm Or Customizable |
Thickness: | 0.21mm-0.5mm As Requested | Hardness: | Full Hard |
Surface: | PE Coated | Quality: | High-Quality |
Zinc Coating: | 40-600g/m2 | ||
High Light: | Hot Dipped Prepainted Steel Coil,0.3mm PPGL Prepainted Steel Coil,Zinc Iron Prepainted Steel Coil |

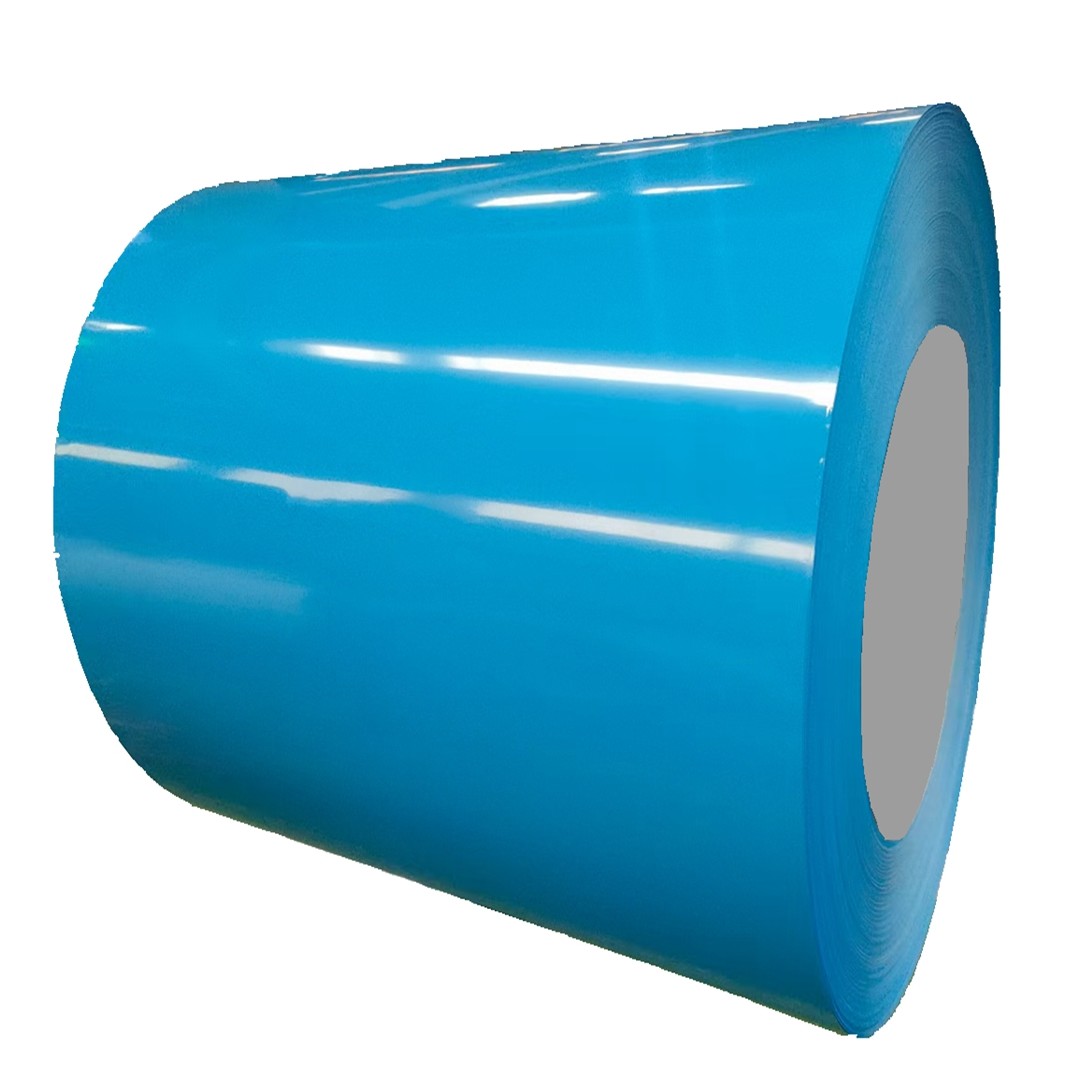

Shandong Fulilai Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.
The color coated roll has light weight, beautiful appearance and good anti-corrosion performance, and can be processed directly.The color is generally divided into gray white, sea blue and brick red. It is mainly used in advertising industry, construction industry, home appliance industry, electrical appliance industry, furniture industry and transportation industry. The coating used for color coating roll shall select appropriate resin according to different application environment, such as polyester silicon modified polyester, polyvinyl chloride plastic sol, polyvinylidene chloride, etc. Users can choose according to the purpose.
What is Prepainted Steel? |
Pre-painted steel is a corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. Fulilai Steel Group produces pre-painted steel sheets and coils coils by directly applying primer and paint on to steel sheet in a coating line. The finished products can easily be roll formed, bent, and stamped without tarnishing the paint quality.
Specification of Pre-Painted Gavalume Steel Coils (PPGL) |
Products Name
|
Color Coated Aluminum Zinc Steel Coil Pre-Painted Gavalume Sheet | ||
Standard | JIS G3312/G3318/G3322, ASTM A755/A755M, IS 14246:95, EN 10169-1or equivalent | ||
Grade
|
G550,G350, etc | ||
Material | 1050, 1060, 3003,3004,3005, 3105, 1100, 5005, 5052, 5754, etc. | ||
Paint film
|
Top:15-25 +5um Back :5-8um |
||
Surface Treatment | Coated/ Prepainted galvanized | ||
Surface coating | PE, SMP, HDP, PVDF | ||
Coil ID | 508mm / 610mm | ||
Zinc Coating | AZ30~AZ150 | ||
Primers | Epoxy, Polyster (PE) / High Durability Polyester (HDP) / Silicon Modified Polyster (SMP)/ Polyvinylidene Difluoride (PVDF) | ||
Top Coat | Regular Modified Polyster (RMP) | ||
Back Coat | Epoxy, Polyster, Suitable for PU Bonding for Sandwich Panel | ||
Coil Weight | 3-8 Tons | ||
Thickness | 0.15-3.0mm | ||
Width | 5-1850mm | ||
Color | All RAL code or as customer's request | ||
Length | Coil or as customer's request | ||
Forms | Coils, sheet, strip, etc. | ||
Packing details | waterproof paper+plastic film+iron packing+bunding or as per customers request. | ||
Delivery time | 15-21 days after receiving deposit |
Manufacturing process |
Prepainted Steel Applications |
