| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | Zhongli Brand |
| Certification: | CE,BV,ISO9001,CQC...... |
| Minimum Order Quantity: | 1 Ton |
| Price: | USD 480-760 Per Ton |
| Packaging Details: | Standard Seaworthy Packages |
| Delivery Time: | 8-14 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Tons per Month |
| Zin Coating: | 40-600g/m2 | Surface: | PE Coated |
|---|---|---|---|
| Color: | According Customer Request | Hardness: | Full Hard |
| Width: | 1000mm 1250mm Or Customized | Thickness: | 0.21-0.50mm |
| Ral Color: | All Ral Color | Processing Service: | Cutting,Bending,Decoiling,Punching,Welding... |
| Tolerance: | ±5% | Coating: | AZ41-AZ60 |
| Length: | 6m/12m Or Customized,customer Request | Type: | Steel Coil,cColor Coated Sheet |
| Application: | Making Pipes,cuting Sheets,making Small Tools,making Corrugated Plate...... | ||
| High Light: | Color Prepainted Galvanized Steel Coils,Ral Color PPGI Steel Coils,0.3mm PPGI Color Steel Coils |
||
| What is Prepainted Steel? |

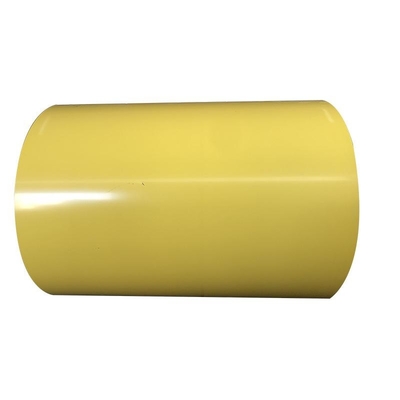

Color Prepainted Galvanized PPGI Steel Coils is a product made of cold rolled steel plate and galvanized steel plate by surface pretreatment (degreasing, cleaning, chemical conversion), continuous coating (roll coating), baking and cooling. Coated steel sheet has light weight, beautiful appearance, good corrosion resistance and can be processed directly. It provides a new raw material for construction, shipbuilding, vehicle manufacturing, household electrical appliances, electrical industry, etc. It has played a good role in replacing wood with steel, efficient construction, energy saving, pollution prevention and other good results
| Specification of Pre-Painted Gavalume Steel Coils (PPGL) |
|
Standard
|
PPGI:JIS G3303,GB/T 12754-1991;PPGL:ASTM A755/M,JIS G3322 |
|---|---|
|
Material
|
DX51D,DX52D,S350GD,S550GD |
|
Thickness
|
0.12-3.0 mm |
|
Width
|
20-1500 mm,Normal width is 914/1000/1219/1250/1500 mm |
|
Type of coating process
|
Front:double coated&double drying; Back:double coated&double drying;single coated&double drying; |
|
Coating Types |
Top paint:PVDF,HDP,SMP,PE,PU; Primer paint:Polyurethance,Epoxy,PE Back paint:epoxy,modified polyester |
|
Coil ID
|
508 mm/610 mm |
|
Coil weight
|
3-12 tons |
|
Packing
|
Export standard packing or according to customers' requirement. |
|
Certificate
|
ISO9001:2008 |
|
Shipment
|
Within10-15 workdays,25-30 days when the quantity beyond 1000 tons. |
Prepainted Galvanized Steel Coil/PPGI coating film introduction
Top paint film:
RPE, SMP, HDP,PVDF,Other paints.
Function: It functions as a sunlight proof cover, especially prevent the destroy by the ultraviolet rays. When the top paint film reaches a certain thickness, it forms a compact cover, and reduce the water and oxygen permeability.
Primer paint film:
Polyurethane, Epoxy, PE
Function:Strengthen the adhesiveness between the top paint film and the basemetal. Even permeable water happens, the top paint film will not peel off. There is corrosion inhibitor which is corrosion resistance. Polyurethane is necessary for higher processing flexibility and weather resistance requirements.
Passivation layer
Function:Increase the adhesion between the metallic layer and coating film. Extend life span also.
Metallic coating
Function:The metallic coating provides the fundamental protection for the steel.
The popular coating metal are galvanize, galvalume and other alloyed metals.
Substrate steel
Cold rolled steel is usually used as substrate, it decides the mechanical properties and the steel shape and flatness.
Back paint film
Epoxy, Modified PE.
Back paint can sustain color in good condition and has good binding.
| Prepainted Steel Applications |
| Package & Delivery |
|
Packing |
1.Generally package:Antiwater paper+strapped with min three strapping strips. |
|---|---|
|
2.Standard exporting package. Anti-water paper and plastic+covered by iron sheet+ strapped with min three strapping strips.
|
|
|
3.Excellent package: Anti-water paper and plastic film+ covered by iron sheet+ strapped with min three strapping strips+fixed on
the iron or wooden pallets by strapping strips. |
|
|
Shipping
|
1.Shipping by containers |
|
2.Shipping by bulk ship
|
