| Place of Origin: | Shandong,China |
|---|---|
| Brand Name: | Zhongli Brand |
| Certification: | ISO9001,CQC,BV,CE,SGS |
| Minimum Order Quantity: | 1 ton |
| Price: | USD 460-780 Per Ton |
| Packaging Details: | Stamdard Export Seaworthy Package |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 Tons per Month |
| Application: | Making Pipes,cutting Sheets,making Small Tools,making Corrugated Sheets...... | Type: | Steel Coil,Color Coated Steel Sheet |
|---|---|---|---|
| Length: | 6m,12m Cuatomizable | Coating: | AZ 15-375,Z15-375 |
| Tolerance: | ±5% | Processing Service: | Cutting,Bending,Decoiling,Punching,Cutting...... |
| Ral Color: | All Ral Color | Thickness: | 0.21-0.50mm |
| Width: | 1000mm,1250mm,or As Customers' Request | Hardness: | Full Hard |
| Surface: | PE Coated | ||
| High Light: | PPGL Steel Coil Prepainted,0.50mm Prepainted Aluminum Steel Coil,Galvalume Aluminum Steel Coil Prepainted |
||

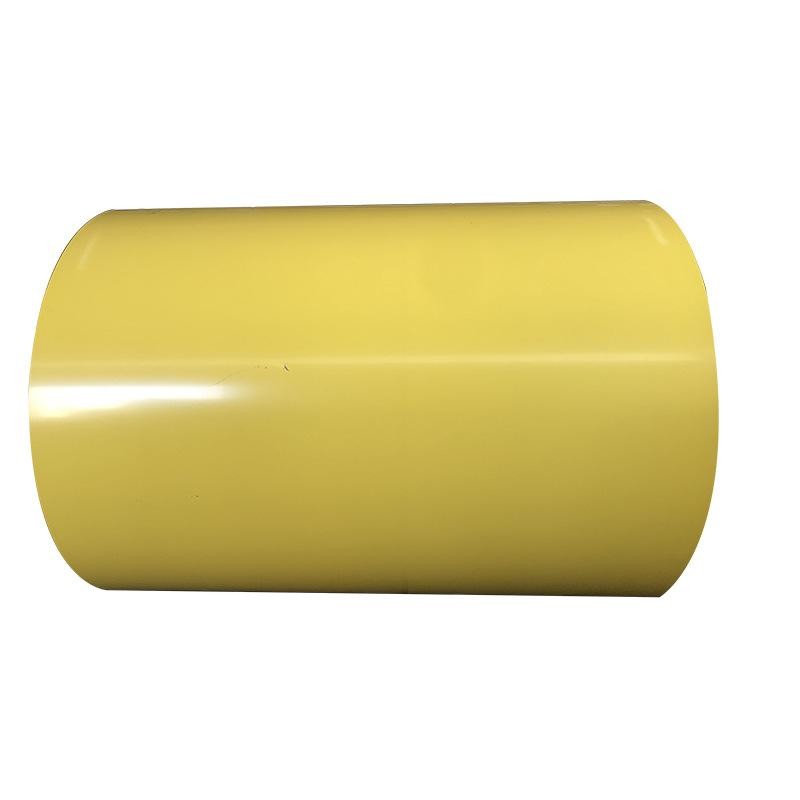

Color Coated Aluminum Zinc Steel Coil Pre-Painted Gavalume Sheet/strips
Shandong Fulilai Steel Group has delivered high-quality, long-lasting pre-painted steel sheet and painted steel coils with a high-grade finish that is uniform in color, gloss, texture and thickness. These durable products combine the strength of steel, the protection against corrosion and the beauty of color into the ideal product for you. Our prepainted steel products are available in a variety of material thicknesses, widths, and lengths as we offer multi-blanking and slitting services.
| What is Prepainted Steel? |
Pre-painted steel is a corrosion resistant substrate that has had paint applied to both sides through a continuous coil coating process, which produces a uniform paint finish. Fulilai Steel Group produces pre-painted steel sheets and coils coils by directly applying primer and paint on to steel sheet in a coating line. The finished products can easily be roll formed, bent, and stamped without tarnishing the paint quality.
| Specification of Pre-Painted Gavalume Steel Coils (PPGL) |
|
Products Name
|
Color Coated Aluminum Zinc Steel Coil Pre-Painted Gavalume Sheet | ||
| Standard | JIS G3312/G3318/G3322, ASTM A755/A755M, IS 14246:95, EN 10169-1or equivalent | ||
|
Grade
|
G550,G350, etc | ||
| Material | 1050, 1060, 3003,3004,3005, 3105, 1100, 5005, 5052, 5754, etc. | ||
|
Paint film
|
Top:15-25 +5um Back :5-8um |
||
| Surface Treatment | Coated/ Prepainted galvanized | ||
| Surface coating | PE, SMP, HDP, PVDF | ||
| Coil ID | 508mm / 610mm | ||
| Zinc Coating | AZ30~AZ150 | ||
| Primers | Epoxy, Polyster (PE) / High Durability Polyester (HDP) / Silicon Modified Polyster (SMP)/ Polyvinylidene Difluoride (PVDF) | ||
| Top Coat | Regular Modified Polyster (RMP) | ||
| Back Coat | Epoxy, Polyster, Suitable for PU Bonding for Sandwich Panel | ||
| Coil Weight | 3-8 Tons | ||
| Thickness | 0.15-3.0mm | ||
| Width | 5-1850mm | ||
| Color | All RAL code or as customer's request | ||
| Length | Coil or as customer's request | ||
| Forms | Coils, sheet, strip, etc. | ||
| Packing details | waterproof paper+plastic film+iron packing+bunding or as per customers request. | ||
| Delivery time | 15-21 days after receiving deposit | ||
| Prepainted Steel Applications |
