Zin Coated Prepainted Galvanized Steel Coils PPGI PPGL DX51D 1500mm

Basic Information
Place of Origin: Shandong,China
Brand Name: Zhongli Brand
Certification: CE,BV,ISO9001,CQC,SGS
Minimum Order Quantity: 1 Ton
Price: USD 460-780 Per Ton
Packaging Details: Standard Seaworthy Packages
Delivery Time: 5-8 days
Payment Terms: L/C, T/T
Supply Ability: 5000Tons per Month
Detail Information
Application: Making Pipes,cutting Sheets,making Small Tools...... Type: Steel Coils,Color Coated Steel Sheet
Standard: BS,JIS,GB,EN,AISI,ASTM...... Length: 6m,12m,Customized As Customer's Request
Coating: AZ15-AZ375,Z15-Z375 Tolerance: ±5%
Processing Service: Cutting,Bending,Decoiling,Punching,Welding Ral Color: All Ral Color
Thickness: 0.21-0.50mm Width: 1000 1200 1250mm Or Customized
Hardness: Full Hard Color: According Customer Request
Surface: PE Coated Quality: High-quality
High Light:

Zin Coated Prepainted Steel Coils


PPGL DX51D Steel Coils


PPGL Steel Coils 1500mm

Product Description

Product Display

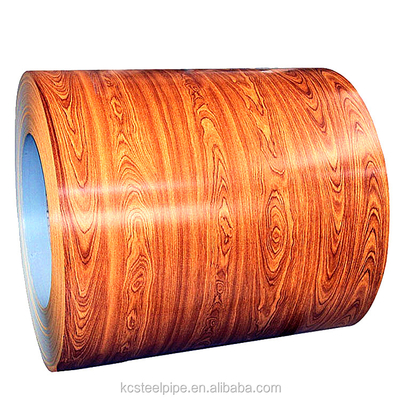

Zin Coated Prepainted Galvanized Steel Coils PPGI PPGL DX51D 1500mm 0
Differences between PPGI and PPGL

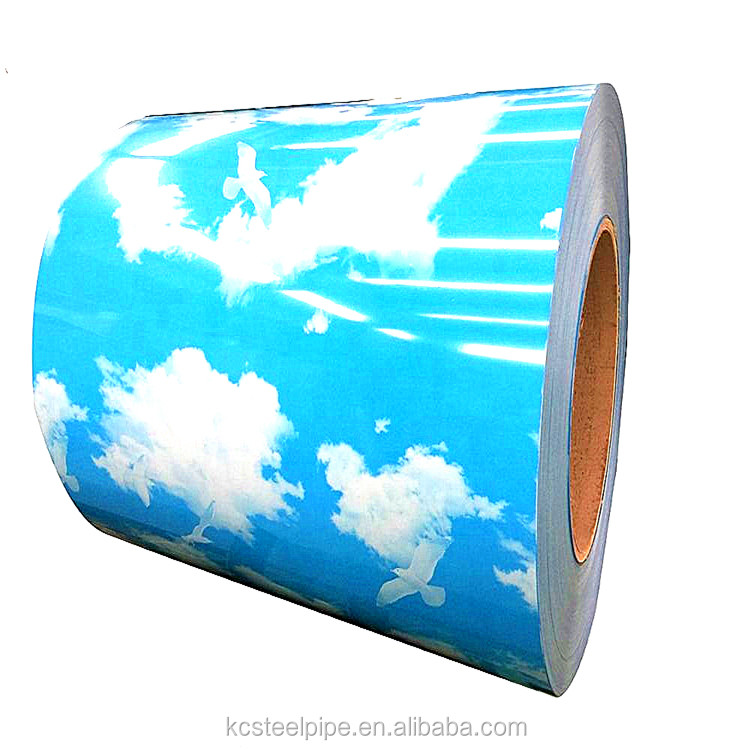

Zin Coated Prepainted Galvanized Steel Coils PPGI PPGL DX51D 1500mm 1

DX52D SGCC SGC340 cold rolled prepainted off white color galvanized iron coil

PPGI Cold Rolled Prepainted Galvanized Steel Coils

PPGI is pre-painted galvanized steel coils and sheets, also known as pre-coated steel, color coated steel, PPGI steel coil etc.

Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pre-treatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used to include polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.

Zinc coated steel substrate for PPGI is typically produced on a continuous galvanizing line (CGL). The CGL may include a painting section after the hot dip galvanising section, or more commonly the metallic coated substrate in coil form is processed on a separate continuous paint line (CPL). Metallic coated steel is cleaned, pre-treated, applied with various layers of organic coatings which can be paints, vinyl dispersions, or laminates. The continuous process used to apply these coatings is often referred to as Coil Coating.

The steel thus produced in this process is a prepainted, prefinished and ready for further processing into finished products or components. to use material.

The coil coating process may be used for other substrates such as aluminium, or aluminium, stainless steel or alloy coated steel other than "pure" zinc coated steel. However, only "pure" zinc coated steel is typically referred to as PPGI. For example, PPGL may be used for pre-painted 55%Al/Zn alloy-coated steel (pre-painted GALVALUME steel).

DX52D SGCC SGC340 Galvanized Iron Coil Cold Rolled Prepainted Off White Color 0

DX52D SGCC SGC340 Galvanized Iron Coil Cold Rolled Prepainted Off White Color 1


Specification of PPGI Iron Coil


Product name
PPGI cold rolled prepainted galvanized iron coils
Material Grade
or Customer’s Requirement
Form PPGI Coils/Sheets, Corrugated Coils/Sheets
Place of Origin Shandong,China(Mainland)
Surface Treament
Coating Material
Color as required
Base Steel Cold rolled galvanized steel, Hot dip galvalume steel, Electro galvanized steel
Top Coating Thickness 9μm-20μm
Back Coated Thickness 7μm-15μm
Thickness 0.3-2.0mm
Width2006 00-1500mm
Zinc Coating Z30-275g/m²
Coil ID 450/610mm
Coil Weight 4-5 tons
Packaging Standard export packing
Transport Ocean Shipping
Port Qingdao/Shanghai
Delivery Time 8-14 days after receive deposit
Payment 30% T/T for deposit and the balance against the copy of BL


Definition and Application
The applications of PPGI Steel Coils are numerous, especially in fabrication and manufacturing environments. Construction workers
mostly use Galvanized Coils for Roofing applications. They are also used as sheet metal brakes in buildings.The biggest use of GI
Sheets is for construction projects in homes, offices, and factories. They resist corrosion,heat, and are easily installable,
making them best suited for roofing. They are also used in the production of corrugated panels, drywall panel profiles,
ventilation systems, etc.
1. Wind And Solar Industries
2. Agriculture Industry
3. Automotive Industry
4. Construction Industry
5. Telecommunication Industry
Zin Coated Prepainted Galvanized Steel Coils PPGI PPGL DX51D 1500mm 4


Applications of Color Coated Galvanized Steel Coils (PPGI)


Pre-painted galvanised steel coils (PPGI) have been extensively used across a wide range of prestigious projects across the world. Typical applications include construction, white goods and automotive industries.


  1. Building
  2. Roofing
  3. Transport
  4. Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
  5. Solar Energy
  6. Furniture

DX52D SGCC SGC340 Galvanized Iron Coil Cold Rolled Prepainted Off White Color 2

DX52D SGCC SGC340 Galvanized Iron Coil Cold Rolled Prepainted Off White Color 3
